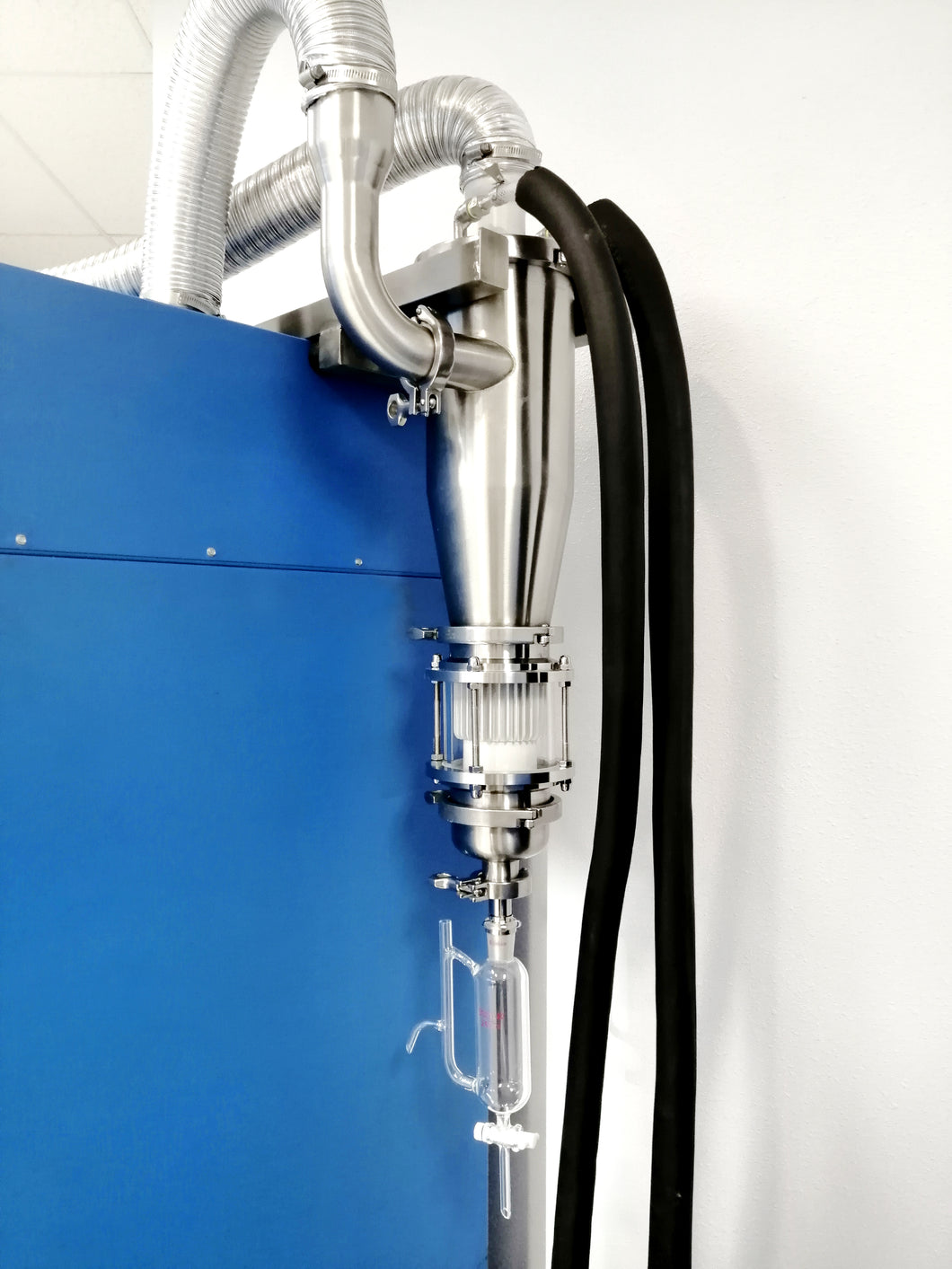

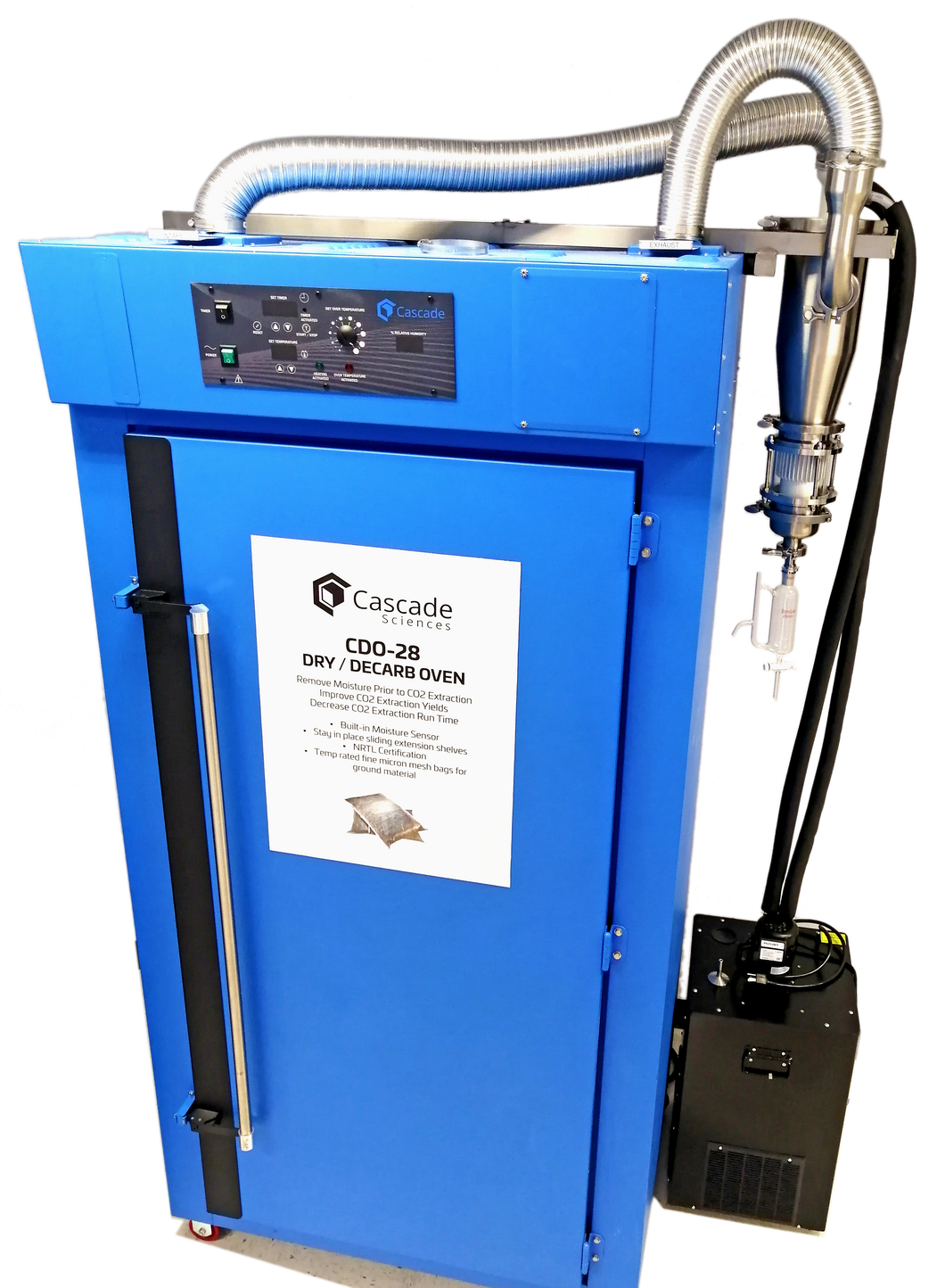

OD-28 ("Odie") and Pro Chiller - Terpene Trap for the CDO-28 Decarb Oven (not included)
The "Odie" (OD-28) Terpene Trap is designed specifically to capture hydrosol and terpenes from the decarb process (decarb oven sold separately)
- Captures valuable terpenes and hydrosol.
- Reduces odors in the lab and surrounding environment.
- Convert oven to closed loop operation, eliminating the need for venting.
- Increase processing efficiency by removing substantially more moisture from biomass.
- Help preserve biomass during decarb by reducing oxygen availability throughout the process.

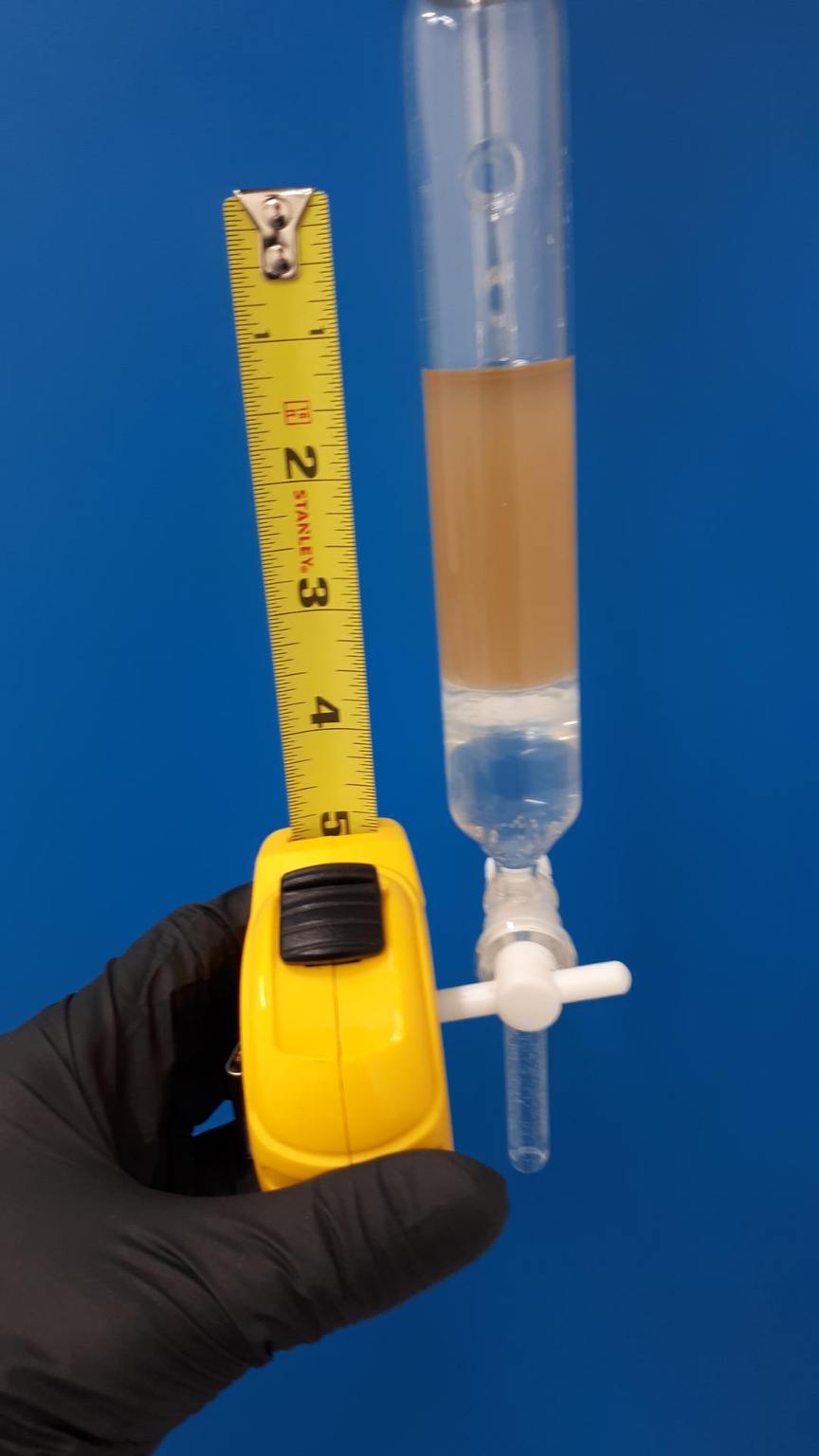

Included: "Odie" Terpene Trap and oven mount, Pro Chiller, Terpene/Hydrosol Separator, and all required hardware for installation
"Odie" Terpene Trap Specifications
| Model | "Odie" (OD-28) Terpene Trap |
| Type | Glycol Terpene/Hydrosol Decarb Oven Cold Trap |
| Dimensions | 42" X 12" X 6" |
| Weight | 30 Lbs |
| Glycol Capacity | 1 Liter |
| Condensate Capacity | Unlimited |
| Condenser Surface Area | 760 in^2 (0.5 m^2) |
| Condenser Thermal Conductivity | 210 W/m*K |
| Materials |
Stainless steel, PTFE (Teflon) coated aluminum, FKM (Viton) seals, borosilicate sight glass and terpene/hydrosol separator |
| Application | Condense terpenes and hydrosol from decarboxylation ovens |
| Intake | 3" OD |
| Exhaust | 3" OD |
| Working Fluid | 50:50 Glycol/Water Mixture |
| Working Temperature | 0F to 300F (-17C to 150C) |
| Warranty | 1 Year Parts and Labor |
Pro Chiller Specifications
| Cooling Capacity | 3200 BTU/hr |
| Glycol tank capacity | 5.5 Gal |
| Dedicated Circuit | 15 Amp |
| Voltage | 115/60 V/Hz |
| Compressor Power | 3/8 hp |
| Thermostat | Digital |
| Glycol Pump | Totton SPC42 |
| Refrigerant | R134a |
| Refrigerant amount | 0.375 Lbs |
| Dimensions (W x D x H) | 16.7" X 15.2" X 29.7" |
| Weight | 85 Lbs |
| Warranty | 1 Year Parts and Labor |
