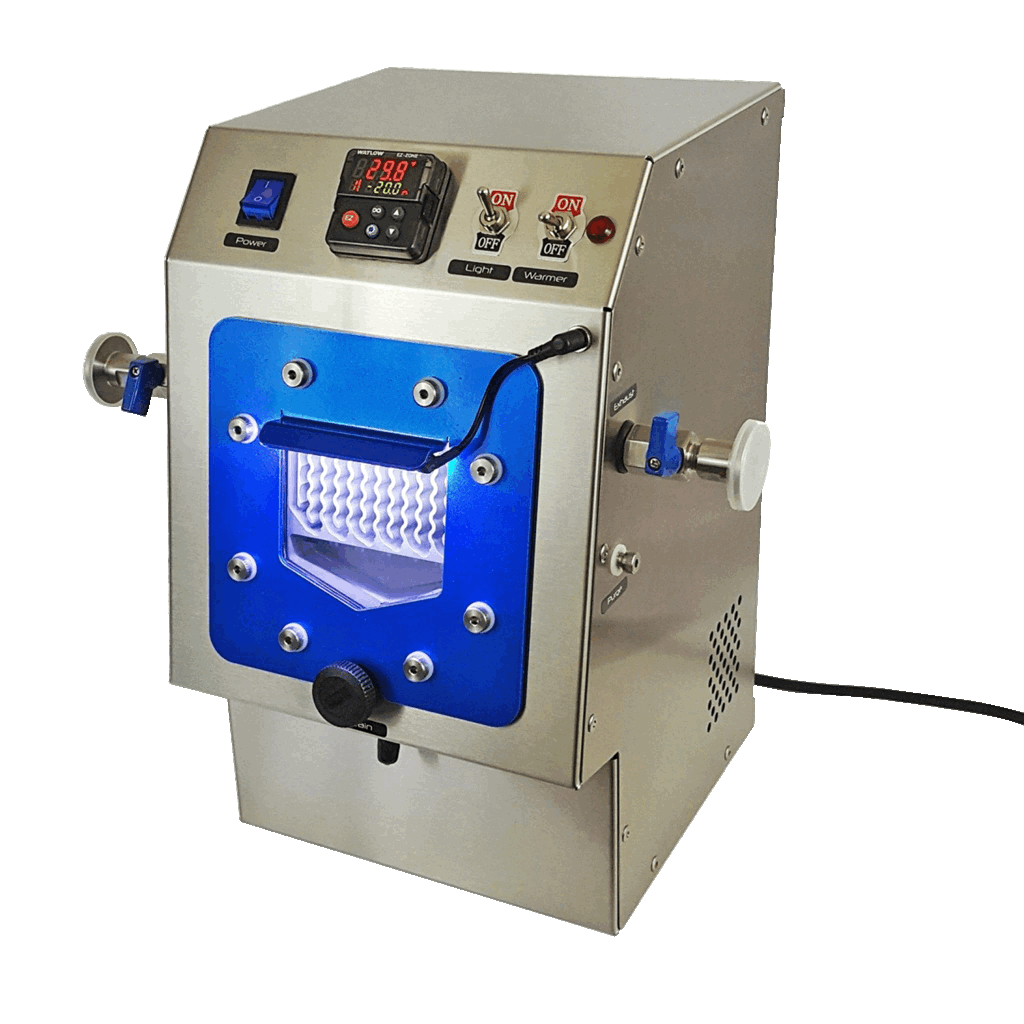

The CF-1000 is specifically designed to capture terpenes in-line during low pressure vacuum processes.
It's easy to use plug & play operation, Teflon coating, continuous operation, and digital temperature control, make it the best choice to reclaim your terpenes.
In-process draining enables non-stop operation. Stainless steel drain valve with stainless intake & exhaust ball valves allow the trap to be isolated, enabling draining without breaking vaccum to the rest of the system.
Reclaim valuable terpenes and/or hydrosol.
Extend the life of your vacuum pump. Using a CF-1000 in-line will keep terpenes from entering the pump where they condense and cause damage.
Provides back-flow prevention, and allows pumps to achieve deeper vacuum levels.
Plug & Play operation. Simply connect hoses, turn on, and set desired temperature down to -10F (-23C) (and lower depending on ambient conditions).
Push-button temperature control. Easily dial-in and monitor real-time temperature with it's dual digital display.
Large borosilicate sight glass with LED backlight allows for quick visual inspection.
Specialized hydrophobic coating produces maximum condensate collection rates and chemical resistance.
Viton seals provide high resistance to temperature and chemicals.
Stainless steel KF-25 intake and exhaust vacuum fittings with centering rings and clamps included.
Lab grade stainless steel enclosure.
Space-conserving counter top design.
- 50 mL internal condensate capacity. The capacity can be expanded via drain port attached to auxiliary vacuum safe container (not included).
|Type:||Terpene Trap™, Cold Trap|
|Dimensions:||12" Wide X 17" Tall X 15" Deep|
|Application:||Capture Terpenes and/or Hydrosol|
|Voltage:||115 Volts / 60HZ (Click here for 220V)|
|Compressor Operating Power:||1/6 hp|
|Compressor Certifications:||UL, CUL|
|* Minimum Temperature:||-20 °F (-29 °C)|
|Internal Condensate Capacity:||50 mL|
|Operating Pressure||0.005 - 2,500 Torr [0.0001 - 50 psi]|
|Display Type:||Digital PID Temperature Controller|
|Drain Type:||3/8" Hose Barb|
|Removable Sight Glass:||YES|
Thermally Protected Compressor
50 psi Pressure Relief Valve
|Terpene Trap Material:||Specialized hydrophobic coating|
|Sight Glass Material:||3/4" Thick Borosilicate Sight Glass|
|Pipes, Fittings, and Valves Material:||Stainless Steel|
|Auxiliary Terpene Container:||50 mL Borosilicate Flask|
|Country of Manufacture:||USA|
